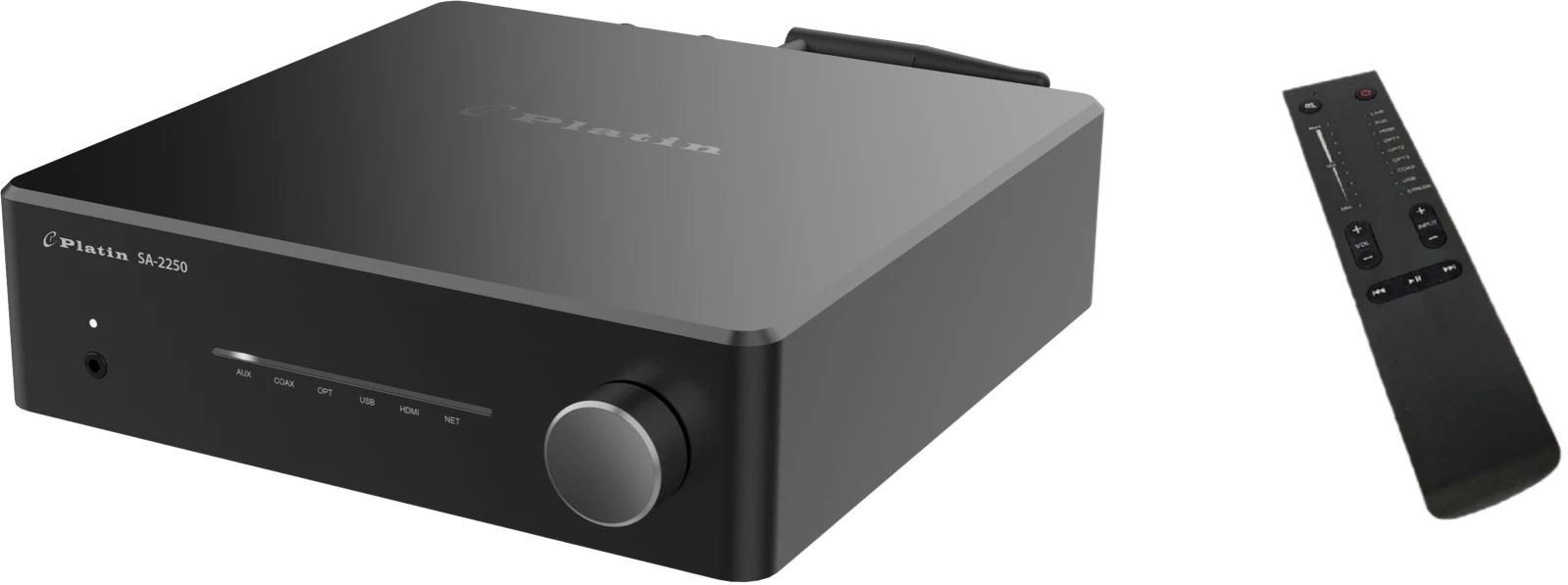

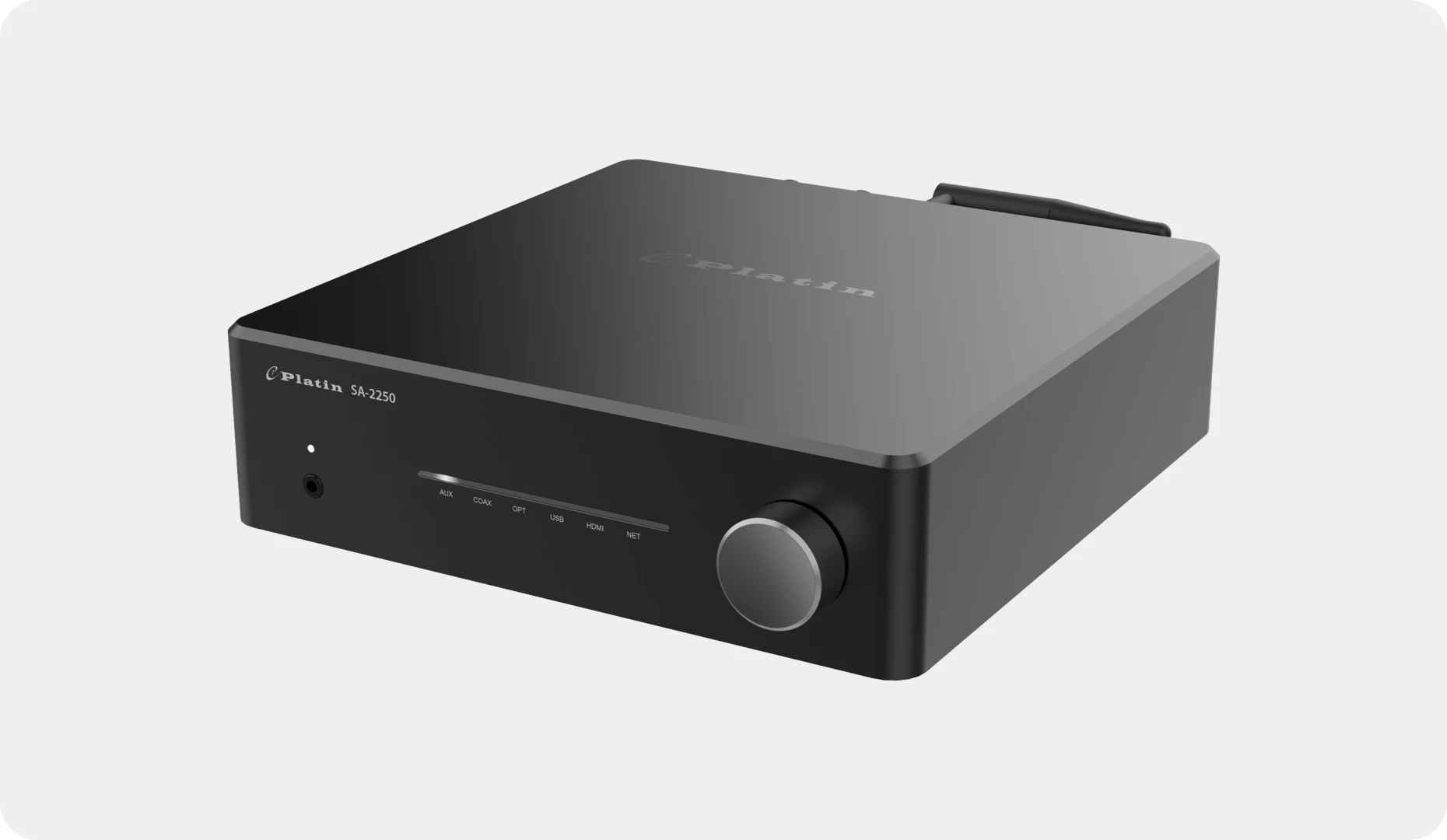

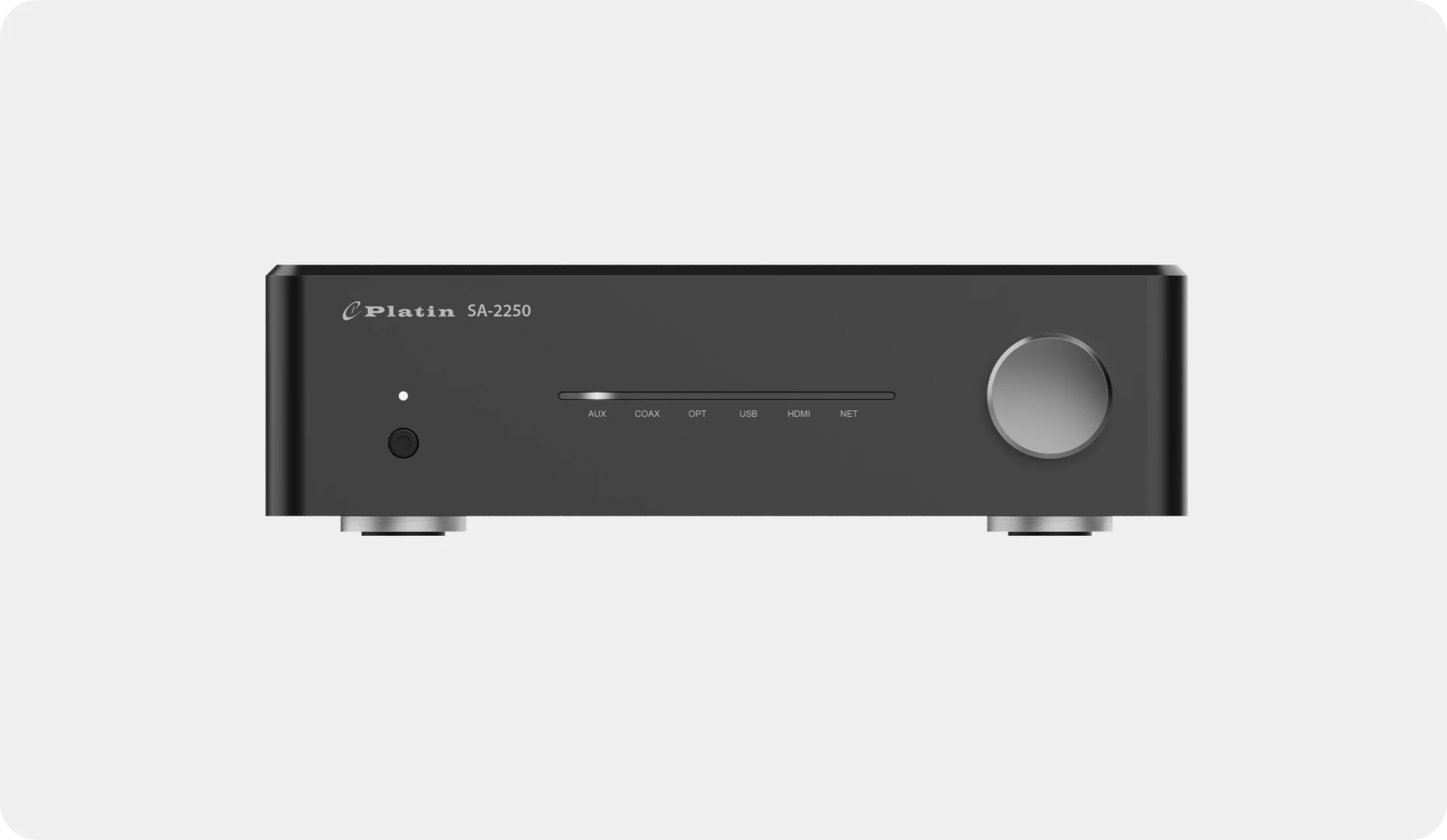

SA-2 Series
A High-Performance, Smart 2-Channel Streaming Amplifier
Revolutionize your home audio with the SA-2 Series, featuring from 120W to 250W power output and cutting-edge GaN technology for unparalleled sound quality
Output
Take SA-2250 as an example, it delivers 2×250W RMS at 4Ω and 8Ω, ensuring consistent performance.
Powerful DSP
The device and App offer automatic room correction, manual EQ, and bass management for optimal sound.
Audio Decoding
Supports DSD to PCM conversion, DSD 512 via NAS/USB input and 128 via wireless (Roon) input.
Connectivity
The SA-2 Series supports HDMI ARC/eARC for high-fidelity audio transmission.
Enclosure
The amplifier is housed in a robust metal enclosure.
Amplifier Technology
It uses GaN solutions for enhanced performance.
Remote Control and App Compatibility
It operates with a RF remote control and can be controlled through an app compatible with iOS and Android platforms.
Streaming Capabilities
A built-in LS10 streaming module enables support for Cast 2.0, Spotify, SoundMachine, Roon ready, Airable, AirPlay2, QPlay, DLNA, etc
The SA-2 Series offers decoding capabilities for audio sources such as analog, digital, HDMI ARC/eARC, and streaming, including DSD to PCM decoding. It supports DSD upto DSD512 through USB inputs, DSD 128 through WIFI connection. It also supports both manual and automatic EQ adjustments. Control and configuration can be managed through the Platin Generic App.
Specifications
| Series | SA-2150 | SA-2150 | SA-2150 |
| Output Power 8Ω | 150W | 200W | 250W |
| Output Power 4Ω | 150W | 200W | 250W |
| THD+N | <0.0015%(20Hz -20kHz,1W.8Ω, AES17 filter) | <0.0015%(20Hz -20kHz,1W.8Ω, AES17 filter) | <0.0015%(20Hz -20kHz,1W.8Ω, AES17 filter) |
| SNR | >114dB(A-weighted, digital input) | >114dB(A-weighted, digital input) | >116dB(A-weighted, digital input) |
| FR | 20Hz ~ 20 kHz ±0.5dB | ||
| Size | W 220 mm x D 268.5 mm x H 64.7mm | ||
| Wi-Fi Connectivity | Wi-Fi 802.11 b/g/n/ac, dual-band Wi-Fi (2.4 GHz and 5 GHz) | ||
| Bluetooth | Bluetooth 5.2 | ||
| Ethernet | Ethernet connectivity at 10M/100M speeds | ||

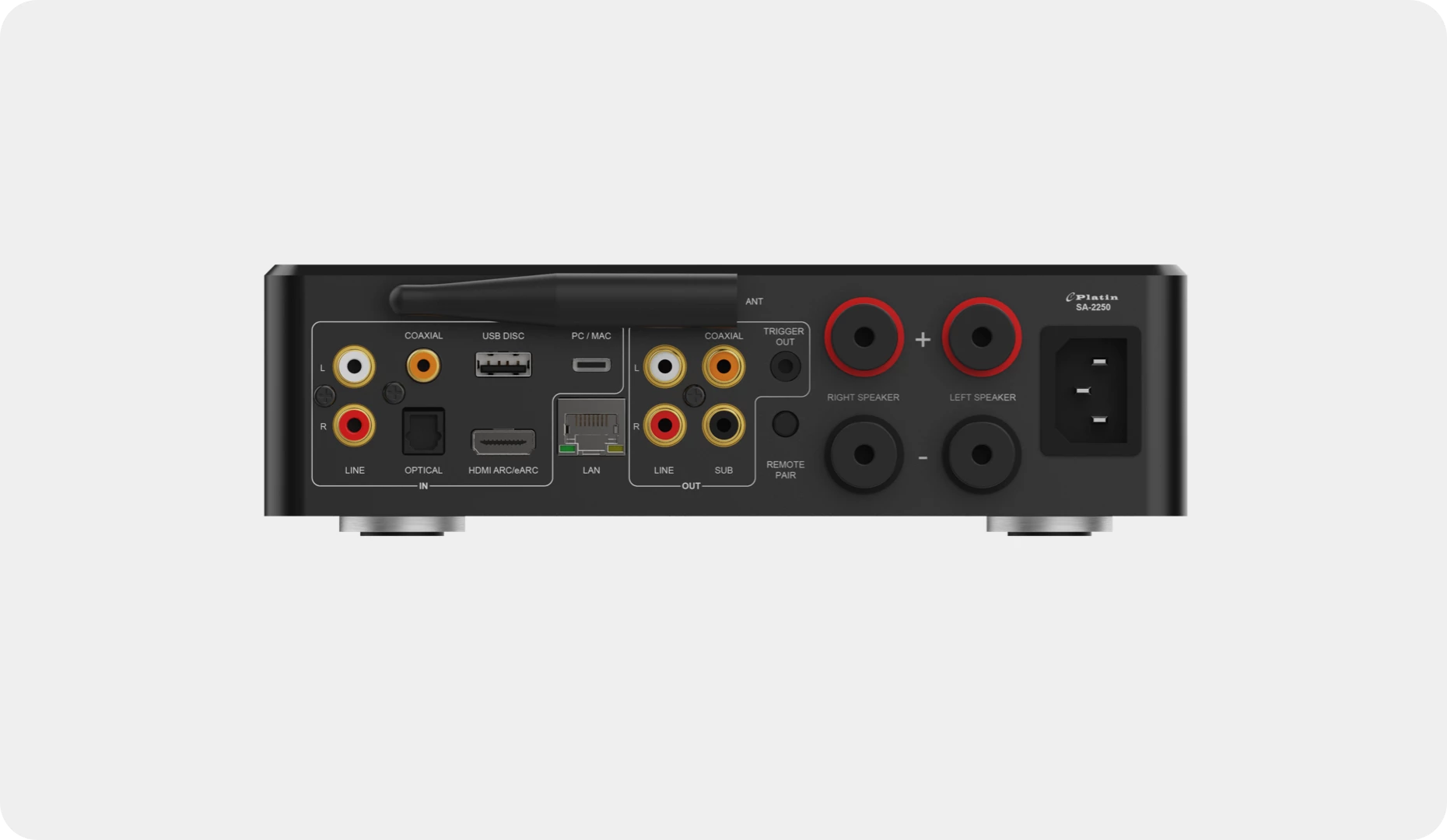

| Outputs | 2 x line out, 1 x Coaxal, 1 x Sub out, 1 x Trigger out, 4 x Binding posts + + - -, 1 x Toggle button, supporting switch between phono MM and RCA input with a toggle switch | ||
| Others | 1 x HDMI ARC/eARC , 1 x Antenna, 1 x RJ45 Ethernet port,1 x Phono mm/ RCA combo input | ||
