Dolby Atmos Decoding via Dante DEP/AES67

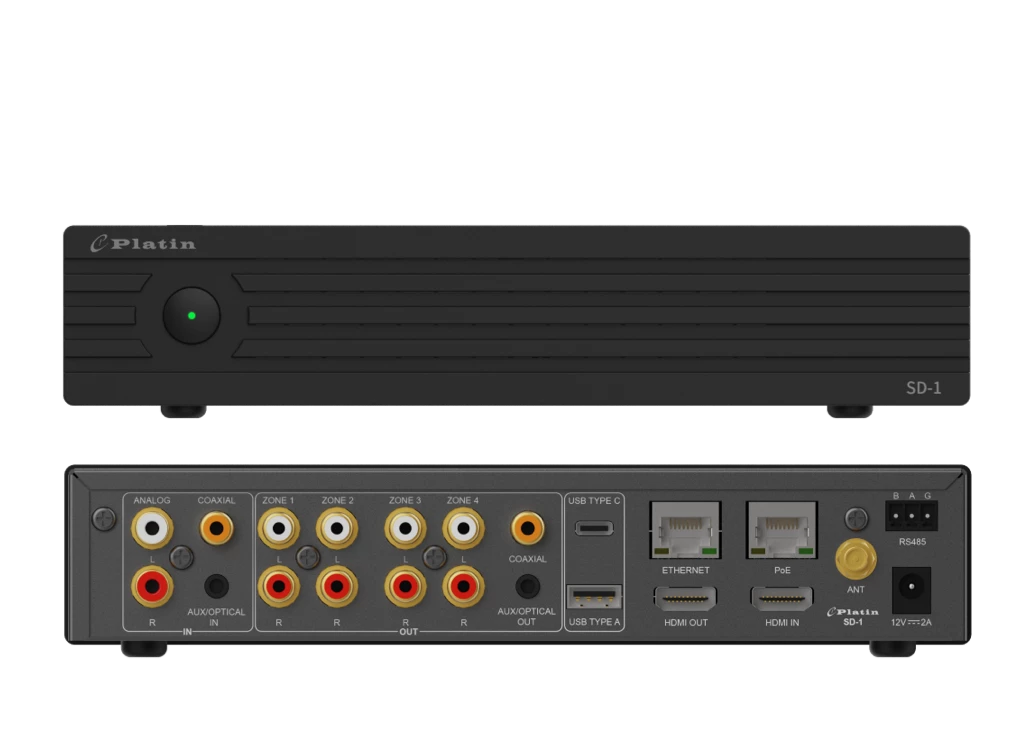

The Platin SD-1 boasts Dolby Atmos decoding capabilities, including support for Dolby Atmos 5.1/7.1, delivering an immersive sound quality. This is made possible through AES67 or Dante DEP standards, all while using a single CAT5e/6a Ethernet cable.
X3.0 Companion App Control
The Platin SD-1, along with the entire system, can be fully controlled through the Platin X3.0 companion app. This app offers individual speaker management, the flexibility to play different music on individual speakers, or group them togetherfor synchronized audio playback. Setup is straightforward, whether through the local network or remotely via cloud-based connections.
Multiple Inputs/Outputs
The unit is also fitted with multiple analog and digital inputs/outputs, enabling multi-zone audio transmission.
Mounted with Powerful DSP
The Platin SD-1 is equipped with adjustable equalization (EQ), feedback control(AFC), echo cancellation (AEC), active noise cancellation (ANC), and mixing features. Additionally, it includes Room EQ for optimized sound performance.
| Design | Standard Half-rack and 1U design |
| Size | W 218.6 mm xD 121.2 mm xH 43.5mm (Without feet) |

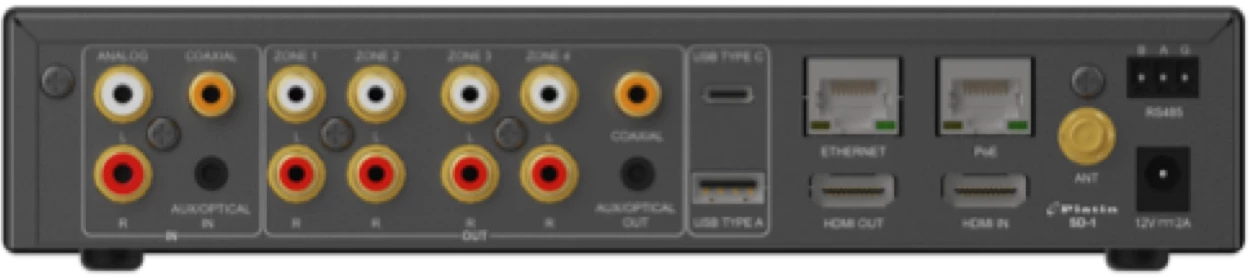

| Rich local ports | Analog RCA, Coax,USB, Aux/Optical, and HDMI ARC/eARC etc |
| Inputs | 1 xRCA L and R,1xCoax, 1xAux combo with Optical,1xHDMI 1 xType-C and 1 xType-A for UsB audio and firmware upgrade |
| Outputs | 4 xRCA L and R to 4 zones, 1 xCoax, 1 xAux combo with Optical, 1 xHDMI |
| Ethernet port | 2 x Gigbit Ethernet ports |
| Others | 1xRS485,1 xAntenna port |
| S/N Ratio | Analog In/Analog Out:>100dB,A-wt @2V,1kHz Digital In/Analog Out: >110dB, A-wt @2V, 1kHz Analog In/Digital Out:>100dB,A-wt @OdBFS,1kHz Digital In/ Digital Out:>115dB, A-wt @OdBFS, 1kHz |
| THD+N | Analog In /Analog out: <0.008%@2V, 1kHz Digital In /Analog Out:<0.003%@2V, 1kHz Analog In/Digital Out:<0.008%@0dBFS, 1kHz Digital In / Digital Out:<0.0001%@0dBFS, 1KHz |
| Frequency Response | 20Hz~20 kHz+0.5dB |
| Channel numbers | Data transmission scalable from 1 by 1 up to 32 x32 channels |
| AoIP | Works with Dante or own AES67 solution (default) for HO streaming for lower cost |
| Supported Zones | Suppots up to Multi-zones playing at the same time via X3.0 App |
| Supported streaming | Spotify, Sound machine, Roon ready, Airable, Ariplay2, Qplay, DLNA, etc |
| Dolby Atmos & DTS:X | Supports output both locally and via AolP to amplifiers or speakers |
| 8-ch, 4-zone local output | Support multi-zone music or multi-channel audio for home theater via local ports |
| Compact and cost-efficient | Core technologies like streamSync (multi-stream), AolP, and control are software-defined on one core hardware platform. |
| Smart control & API | Control both home theater and Cl systems through an intuitive app,with open APl for third-party integrations. Supports both local and cloud control |
| App | Available in lOs and Android platforms |
| Power supply | POE or DC power |
